OUR ROBOTS / COLLABORATIVE WORKSTATION

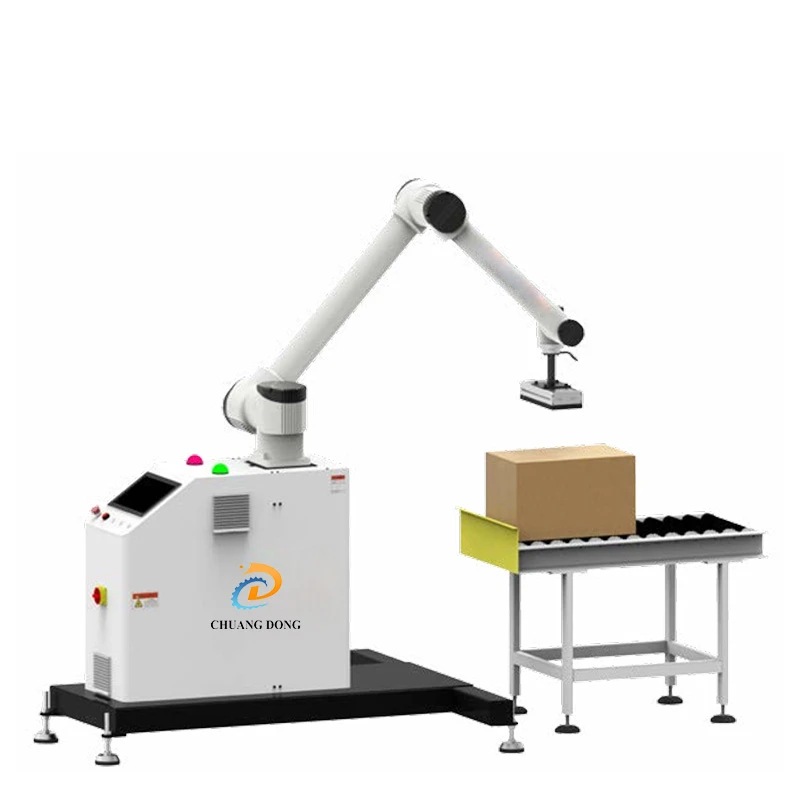

CD1030D-1800
30 kg collaborative palletizing workstation with a 1,800 mm working radius.
Selection starts with the total load, tooling, working envelope and target cycle.
TECHNICAL DETAILS
Plan with the
right specifications.
Rated payload includes the gripper and other end-of-arm equipment. Rated specifications are not a guarantee of throughput for every application.
The catalog lists six degrees of freedom and a 0–600 mm lifting range. Confirm the complete motion configuration and cell risk assessment with our team.
Ask us to confirm the final robot, controller, gripper and safety scope in your written quotation.
| Rated payload | 30 kg |
|---|---|
| Working radius | 1,800 mm |
| Repeatability | ±0.1 mm |
| Robot body weight | 400 kg |
| Power capacity | 2.0 kVA |
| Motion | 6 degrees of freedom; integrated lift |
| Mounting | Floor mounted |
